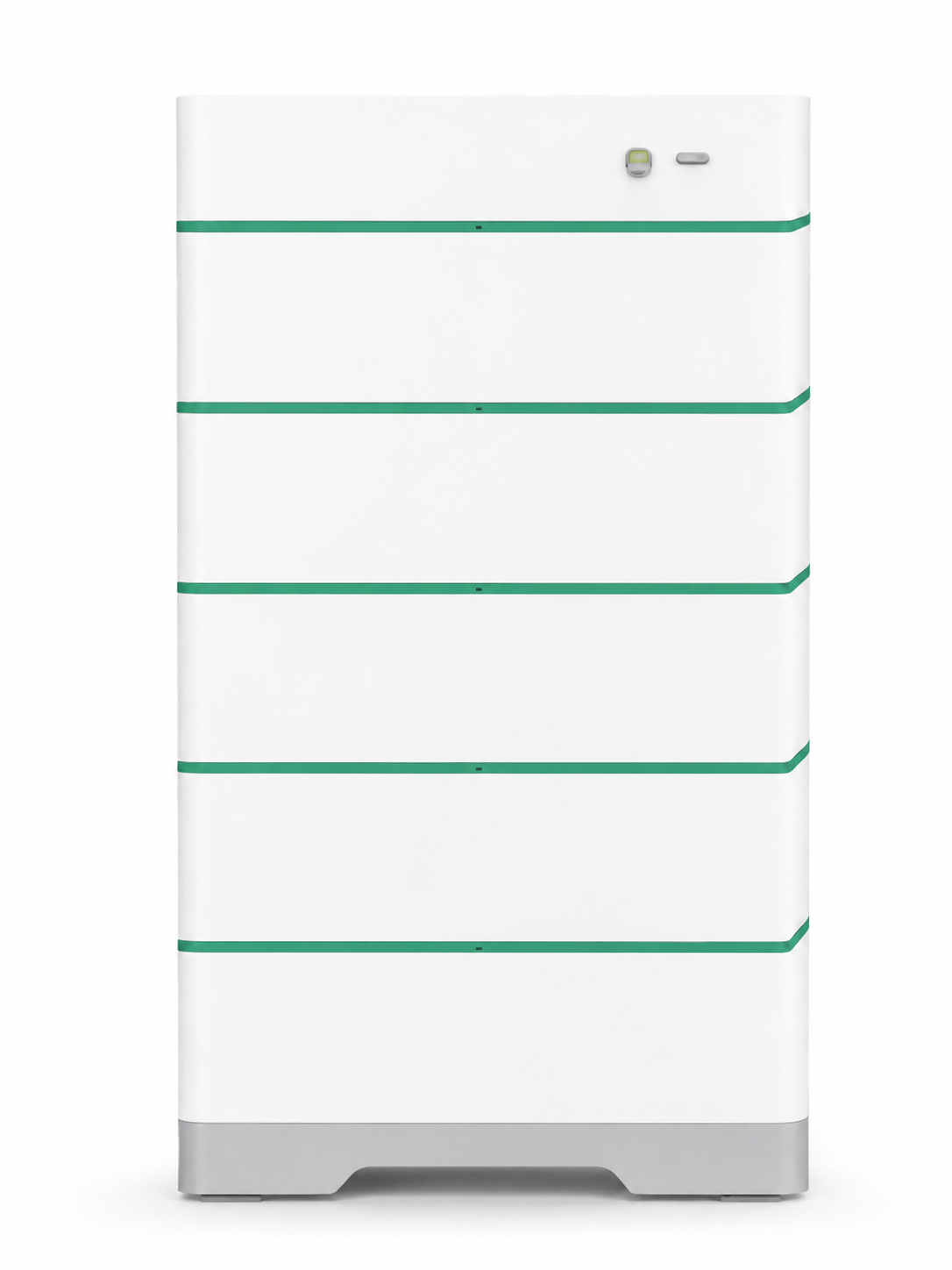

EPH 4-12 kW Three-Phase Hybrid Power Station

EPH 4-12 kW Three-Phase Hybrid Power Station for solar energy storage and project supply.

Request Quote

Back to Stacked High-Voltage and Low-Voltage Grid-Connected Hybrid Home Storage Systems

GSH

Project supply details

EPH 4-12 kW Three-Phase Hybrid Power Station for solar energy storage and project supply.

Suitable for solar storage projects, off-grid backup and distributor project supply.

Model Range: EPH 4-12 kW
Maximum DC power: 6000W / 9000W / 12000W / 15000W
Maximum DC voltage: 1000Vdc

Request Quote

Best for B2B project buyers

Projects that match: Suitable for solar storage projects, off-grid backup and distributor project supply.
Distributors and EPC buyers comparing EPH 4-12 kW Three-Phase Hybrid Power Station for Stacked High-Voltage and Low-Voltage Grid-Connected Hybrid Home Storage Systems supply.
Buyers who need datasheet, packaging information and shipping plan before placing an order.

Information needed for quotation

To prepare a faster quote, Solaura should collect the key project information before pricing.

Target quantity or project capacity
Destination country and nearest port
Application scenario and installation type
Required certificates or documents
Expected delivery schedule

Core specifications

Model Range	EPH 4-12 kW
Maximum DC power	6000W / 9000W / 12000W / 15000W
Maximum DC voltage	1000Vdc
MPPT voltage range	200-850Vdc

System configuration

EPH 4-12 kW Three-Phase Hybrid Power Station technical details

System Configuration

Model

EPH4K / EPH6K / EPH8K / EPH10K / EPH12K

Maximum DC power

6000W / 9000W / 12000W / 15000W

Maximum DC voltage

1000Vdc

MPPT voltage range

200-850Vdc

Maximum input current per string

13A*2

Number of MPP trackers

Number of input strings

Battery input

153.6V100AH / 204.8V100AH / 256V100AH / 307.2V100AH / 358.4V100AH

Battery type

Lithium battery

Battery voltage range

130~700V

Maximum charge/discharge current

25A/25A/

Lithium battery charging strategy

Adaptive BMS

Rated AC power

4000vA / 6000vA / 8000vA / 1000vA / 12000vA

Maximum AC apparent power

7000vA / 8800vA / 1100vA / 13200vA

Maximum output current

8A / 12A / 15A / 17A / 20A

Rated AC output

50/60Hz;400/350

AC output range

45/55Hz;280~490Vac(Adj)

Power factor

0.8leading...0.8laging

Harmonic coefficient

<3%

Grid type

3W/N/PE

Three-phase unbalanced output

0.8leading.….0.11laging

Maximum AC apparent power 2

4000vA / 6000vA / 8000vA / 1000vA / 10000vA

Rated output voltage

400/380V

Rated output frequency

50/60HZ

Output THDv at linear load

<3%

Maximum conversion efficiency

98% / 98.2%

European efficiency

97.3% / 97.5%

Maximum battery-to-AC efficiency

97.2% / 97.4%

MPPT efficiency

99.9%

Dimensions (W/D/H)

640*540*845 / 640*540*1080 / 640*540*1330 / 640*540*1580 / 640*540*1840

Weight (kg)

180 / 230 / 280 / 330 / 380

Operating temperature range (C)

-25C~+60C

Ingress protection

Ingress protection IP65

Cooling concept

Natural convection

Topology

Transformerless

Display

LCD display

Humidity

0-95% (non-condensing)

Communication

Standard WiFi; GPRS/LAN optional

Warranty

Standard5 years；Optional7/10 years

BMS communication

CAN/RS485

Questions before quotation

Can this EPH 4-12 kW Three-Phase Hybrid Power Station be used for stacked high-voltage and low-voltage grid-connected hybrid home storage systems projects?

Yes. It is positioned for Suitable for solar storage projects, off-grid backup and distributor project supply.. Please share project capacity, installation country and target quantity before quotation.

Can I request datasheet, packaging and shipping details?

Yes. Solaura can provide technical documents, packaging details and project quotation information for wholesale and EPC buyers.

What information should I send before requesting a quote?

Please send target quantity, destination country, project type, certificate requirements and expected delivery schedule.
