GS Series 6 kW Grid-Connected Hybrid Solar Storage System

GS combines a 6 kW/51.2V grid-connected hybrid inverter with five battery configurations for compatible 220V projects. Grid connection and operating design must be checked against site conditions and local rules.

Request GS Grid-Hybrid Sizing & B2B Quote
Back to Stacked High-Voltage and Low-Voltage Grid-Connected Hybrid Home Storage Systems

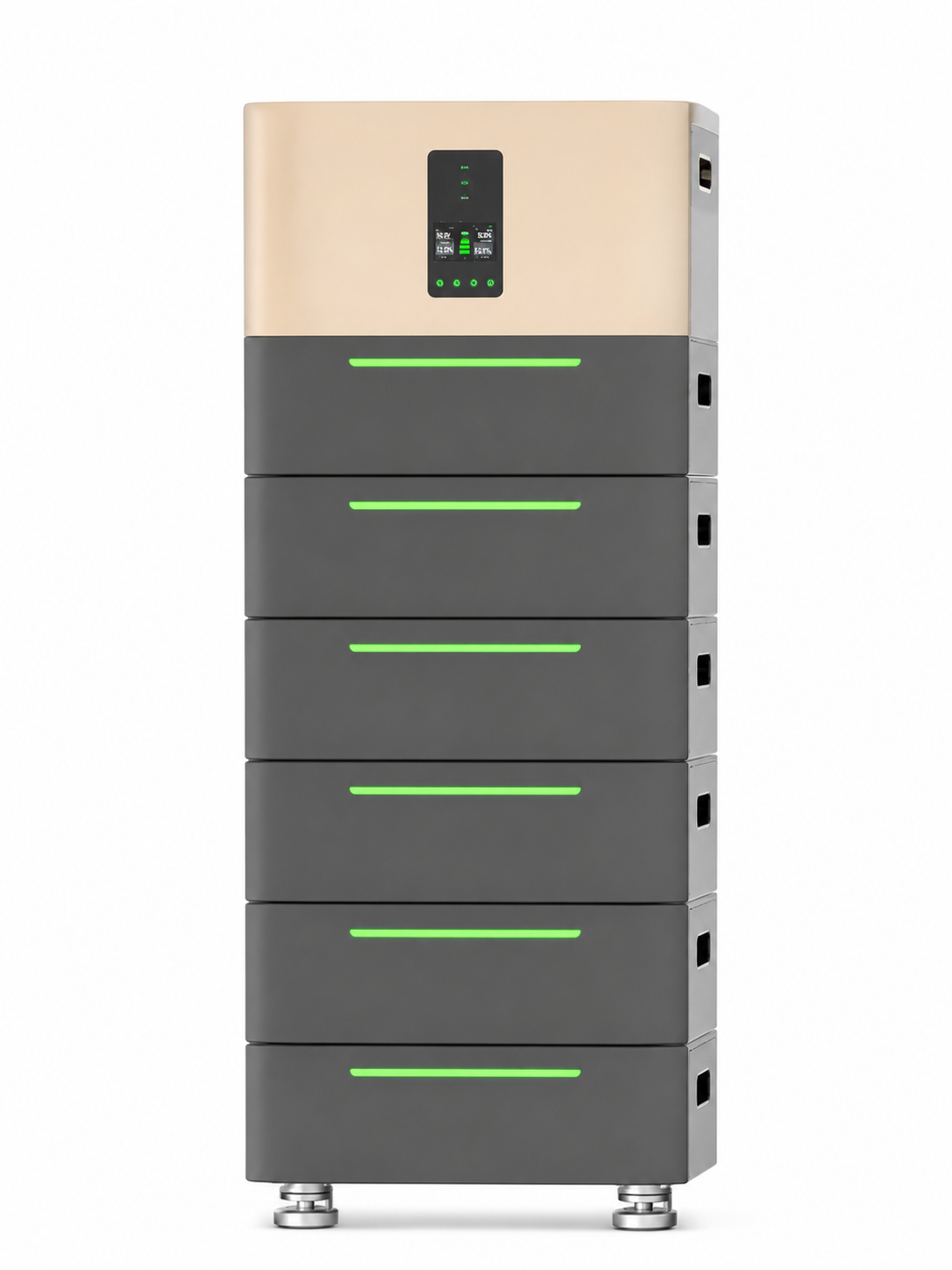

GS Series 6 kW Grid-Connected Hybrid Solar Power SystemGS Series 6 kW Grid-Connected Hybrid Solar Power System
GSH

Project supply details

GS Series 6 kW Grid-Connected Hybrid Solar Power System for solar energy storage and project supply.

Suitable for solar storage projects, off-grid backup and distributor project supply.

Model Range
GS Series 6 kW
Inverter type
6KW/51.2Vgrid-connected hybrid inverter
Rated output power
6KW
Request Quote

GS Series 6 kW System Applications

GS Series 6 kW grid-connected hybrid solar power system application diagram
Application and connection overview for project planning. Final configuration depends on the selected model and project requirements.

Information Needed for a GS Grid-Hybrid Quote

  • Site voltage and local grid-connection requirements
  • Required battery capacity from 10.24 to 30.72 kWh
  • PV array parameters and project operating objective
  • Order quantity and delivery destination
Submit GS Project Details & Request Quote

Grid-Connected Hybrid Storage Configuration

  • 6 kW/51.2V grid-connected hybrid inverter with pure sine wave output.
  • Five storage capacities from 10.24 to 30.72 kWh.
  • Listed 220V grid-connected output and maximum 9 kW PV input.
  • Capacity-specific stacked dimensions support project selection and quotation.

Applications for the GS 6 kW Hybrid System

  • Compatible 220V small-commercial sites
  • Residential solar self-consumption and backup
  • Distributor grid-hybrid storage projects

Core specifications

Model RangeGS Series 6 kW
Inverter type6KW/51.2Vgrid-connected hybrid inverter
Rated output power6KW
Output waveformPure sine wave
System configuration

GS Series 6 kW Grid-Connected Hybrid Solar Power System technical details

System Configuration

Model
GS-6KS10B 6KW/10.24KWH / GS-6KS15B 6KW/15.36KWH / GS-6KS20B 6KW/20.48KWH / GS-6KS25B 6KW/25.6KWH / GS-6KS30B 6KW/30.72KWH
Inverter type
6KW/51.2Vgrid-connected hybrid inverter
Rated output power
6KW
Output waveform
Pure sine wave
Output voltage
220VAC50HZ
Generator input
AC176-280V
Maximum power input
6000W
Grid-connected output
220V
Maximum power output
6000W
Bulk charging voltage
58.6Vdc
Float charging voltage
57.6Vdc
Standard battery module
51.2V100Ah*2 / 51.2V100Ah*3 / 51.2V100Ah*4 / 51.2V100Ah*5 / 51.2V100Ah*6
Nominal capacity(25C,0.2C)
10240Wh / 15360Wh / 20480Wh / 25600Wh / 30720Wh
Rated battery voltage
51.2Vdc
Maximum charging current
120A1 seconds
Maximum discharge current
120A
Operating voltage range
44.8Vdc~58.4Vdc
Operating temperature
-23C~+65C
Rated input voltage
220Vac Configurable: 208/220/230/240 Vac
Input voltage range
90-280V
Frequency range
40-70 Hz, default
Main topology
L+N+PE
Minimum input voltage
90Vac
Maximum AC input voltage
280Vac
Rated current (RMS)
22.7A
Maximum current (RMS)
Maximum 40A
Maximum PV power
9000W
PV array MPPT voltage range
80Vdc~520Vdc
Maximum PV array open-circuit voltage
550Vdc
Solar charging current
Maximum 2*19A
Product dimensions (mm)
536*443*889 / 536*443*1062 / 536*443*1235 / 536*443*1408 / 536*443*1581
Protection
Over-charge, over-discharge, over-current, short-circuit and over-temperature protection
Noise (dB)
<40 dB at <30C (1 m)
Operating temperature 2
-23C~+65C
Humidity
0-95% (non-condensing)
Altitude (m)
<6000
Efficiency
95.0%
Warranty
3 years

Questions before quotation

Is the GS Series a fully off-grid system?

No. Current specifications identify it as a grid-connected hybrid system, so the project must be designed around that architecture.

Which GS battery capacities are available?

Current configurations range from 10.24 to 30.72 kWh in five steps.

Can the GS system connect to the grid in every country?

Grid connection cannot be assumed. Local regulations, site voltage and the installation design must be confirmed first.
