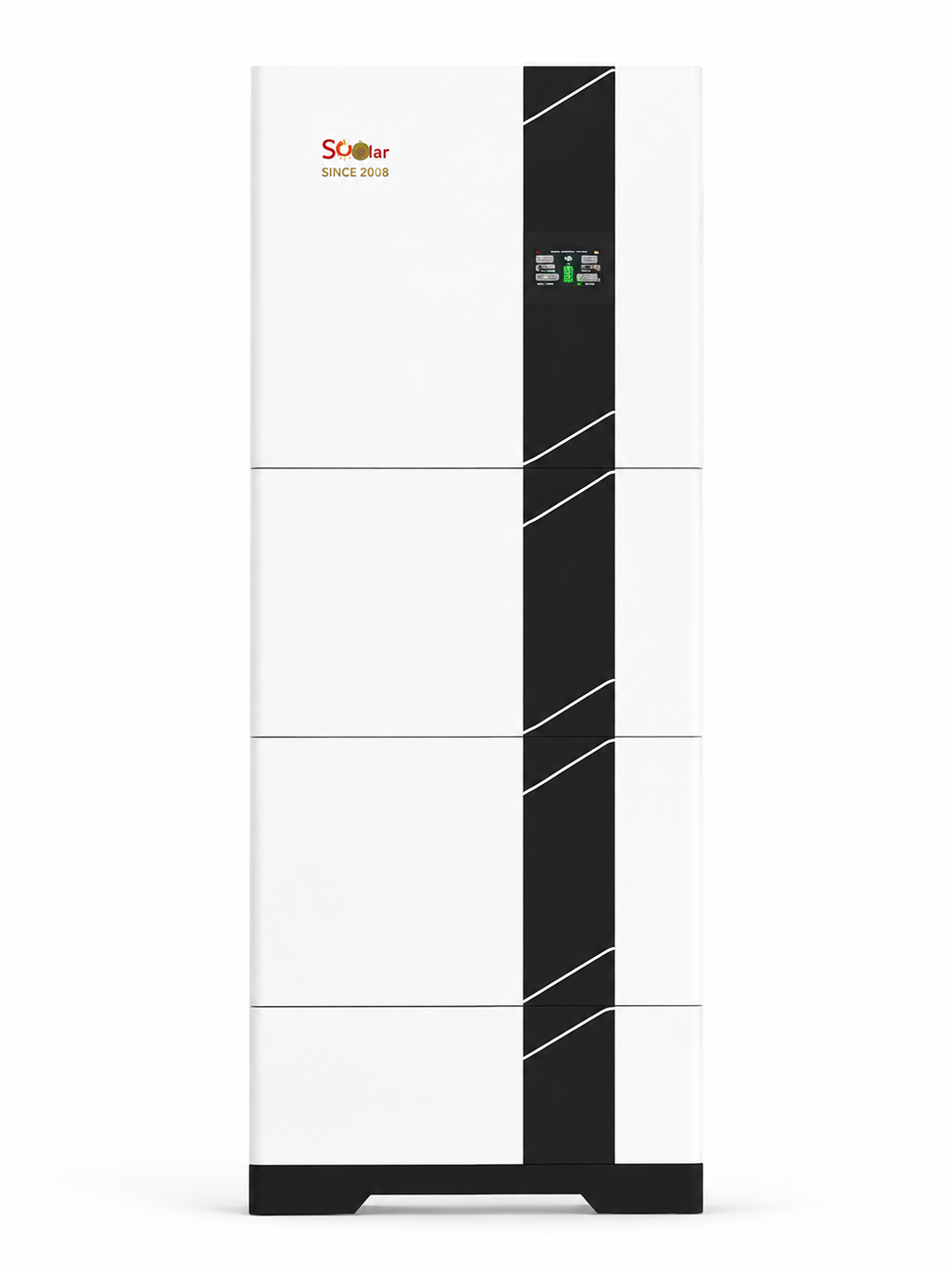

GST Series 5-12 kW Grid-Connected and Off-Grid Hybrid Power Systems

GST Series 5-12 kW Grid-Connected and Off-Grid Hybrid Power Systems for solar energy storage and project supply.

Request Quote

Back to Stacked High-Voltage and Low-Voltage Grid-Connected Hybrid Home Storage Systems

GSH

Project supply details

GST Series 5-12 kW Grid-Connected and Off-Grid Hybrid Power Systems for solar energy storage and project supply.

Suitable for solar storage projects, off-grid backup and distributor project supply.

Model Range: GST Series 5-12 kW
Three-phase hybrid inverter: GST-5K / GST-6K / GST-8K / GST-10K / GST-12K
Inverter type: Three-phase hybrid inverter

Request Quote

Best for B2B project buyers

Projects that match: Suitable for solar storage projects, off-grid backup and distributor project supply.
Distributors and EPC buyers comparing GST Series 5-12 kW Grid-Connected and Off-Grid Hybrid Power Systems for Stacked High-Voltage and Low-Voltage Grid-Connected Hybrid Home Storage Systems supply.
Buyers who need datasheet, packaging information and shipping plan before placing an order.

Information needed for quotation

To prepare a faster quote, Solaura should collect the key project information before pricing.

Target quantity or project capacity
Destination country and nearest port
Application scenario and installation type
Required certificates or documents
Expected delivery schedule

Core specifications

Model Range	GST Series 5-12 kW
Three-phase hybrid inverter	GST-5K / GST-6K / GST-8K / GST-10K / GST-12K
Inverter type	Three-phase hybrid inverter
Rated output power	5KW / 6KW / 8KW / 10KW / 12KW

System configuration

GST Series 5-12 kW Grid-Connected and Off-Grid Hybrid Power Systems technical details

System Configuration

Three-phase hybrid inverter

GST-5K / GST-6K / GST-8K / GST-10K / GST-12K

Inverter type

Three-phase hybrid inverter

Rated output power

5KW / 6KW / 8KW / 10KW / 12KW

Output voltage

Pure sine wave

AC output range

45/55HZ280-490V

Grid type

3W/N/PE

Maximum output current

10A / 12A / 15A / 17A / 20A

Maximum output power

5KW / 6KW / 8KW / 10KW / 12KW

Standard output voltage

400/380V

Standard output frequency

50/60HZ

Battery type

Lithium battery

Battery voltage range

120-700V

Maximum charge/discharge current

25A/25A

Lithium-ion battery charging strategy

Adaptive BMS

Operating temperature

-23C~+65C

Nominal input voltage

380V

Input voltage range

380-400V

Frequency range

50/60Hz

Main topology

3W/N/PE

Maximum PV power (W)

7500 / 9000 / 12000 / 15000

PV array MPPT voltage range

200-850v

Maximum PV array open-circuit voltage

1000V

Solar charging current

18A/18A MPPT, 2 trackers

High-voltage battery module

10.65kwh / 16kwh

Nominal capacity

10560wh / 16000wh

Rated battery voltage

204.8V / 307.2V

Product dimensions (mm)

660*185*1440 / 660*185*1830

Weight (kg)

136 / 186

Protection

Over-charge, over-discharge, over-current, short-circuit and over-temperature protection

Noise (dB)

0 dB at 1 m, IP54

Operating temperature 2

-20C~+65C

Humidity

0-95% (non-condensing)

MPPT efficiency

99.9%

European efficiency

97.3% / 97.5%

Maximum battery-to-AC efficiency

97.2% / 97.4%

Warranty

10 years

Questions before quotation

Can this GST Series 5-12 kW Grid-Connected and Off-Grid Hybrid Power Systems be used for stacked high-voltage and low-voltage grid-connected hybrid home storage systems projects?

Yes. It is positioned for Suitable for solar storage projects, off-grid backup and distributor project supply.. Please share project capacity, installation country and target quantity before quotation.

Can I request datasheet, packaging and shipping details?

Yes. Solaura can provide technical documents, packaging details and project quotation information for wholesale and EPC buyers.

What information should I send before requesting a quote?

Please send target quantity, destination country, project type, certificate requirements and expected delivery schedule.
