USASP Series 120/240V Split-Phase Hybrid Solar Power Station

USASP is selected first by its 120/240V split-phase architecture, not by a country label. Compatible projects can then match 5.5 or 6.2 kW output with 6.4–19.2 kWh battery storage.

Request USASP Split-Phase System Quote
Back to Stacked Low-Voltage Off-Grid Hybrid Home Storage Systems

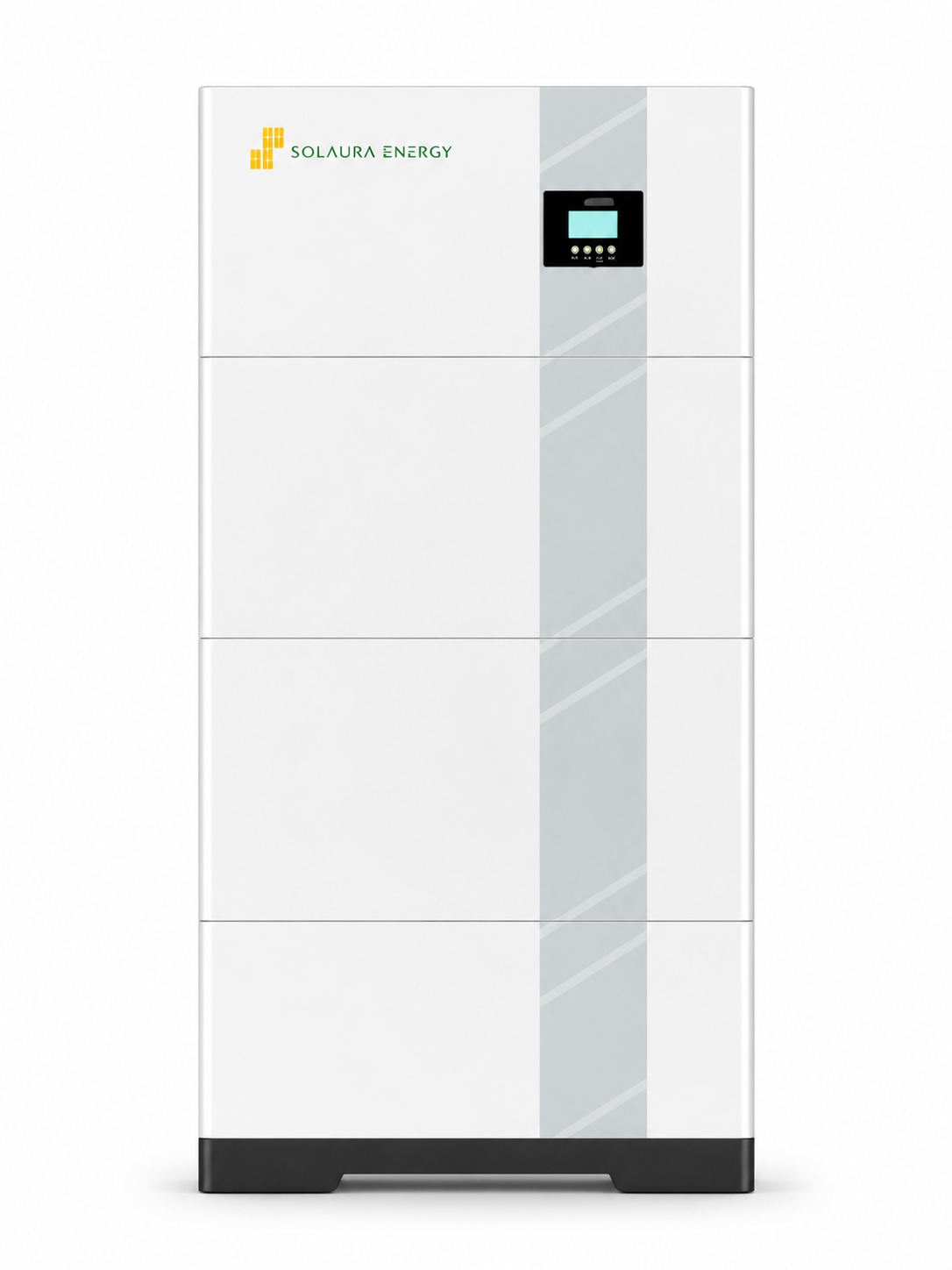

USASP Series Phase-Split Hybrid Solar Power StationsUSASP Series Phase-Split Hybrid Solar Power Stations
OSH

Project supply details

USASP Series Phase-Split Hybrid Solar Power Stations for solar energy storage and project supply.

Suitable for solar storage projects, off-grid backup and distributor project supply.

Model Range
USASP Series
Split-phase hybrid
USASP-5K / USASP-5K / USASP-6K / USASP-6K
AC output connected to grid
Subject to local regulations
Request Quote

USASP Series System Applications

USASP Series split-phase hybrid solar power station application diagram
Application and connection overview for project planning. Final configuration depends on the selected model and project requirements.

Information Needed for USASP System Selection

  • Confirmation of 120/240V split-phase site architecture
  • Required 5.5 or 6.2 kW output and battery capacity
  • Grid-connection requirement, local rules and PV parameters
  • Order quantity and delivery destination
Submit Split-Phase Requirements & Request Quote

Split-Phase Power for Compatible Electrical Markets

  • 120/240V split-phase output with L1-N/L2-N topology.
  • 5.5 kW or 6.2 kW pure sine wave model options.
  • 48V lithium battery configurations from 6.4 to 19.2 kWh.
  • Maximum PV array power of 6.6 or 7.2 kW with a 120–450V MPPT range.

Applications for USASP Split-Phase Systems

  • Compatible 120/240V split-phase homes
  • Split-phase small-commercial backup
  • Distributor supply for specified electrical markets

Core specifications

Model RangeUSASP Series
Split-phase hybridUSASP-5K / USASP-5K / USASP-6K / USASP-6K
AC output connected to gridSubject to local regulations
Inverter typesplit-phase hybrid inverter
System configuration

USASP Series Phase-Split Hybrid Solar Power Stations technical details

System Configuration

Split-phase hybrid
USASP-5K / USASP-5K / USASP-6K / USASP-6K
AC output connected to grid
Subject to local regulations
Inverter type
split-phase hybrid inverter
Rated output power
5.5KW / 5.5KW / 6.2KW / 6.2KW
Output waveform
Pure sine wave
AC output range
120-240V
Grid type
L1-N/L2-N
Maximum output current
45A/23A / 45A/23A / 51A/26A / 51A/26A
Off-grid AC output
split-phase hybrid inverter
Maximum output power
5.5KW / 5.5KW / 6.2KW / 6.2KW
Standard output voltage
120/240V
Nominal output frequency
50/60HZ
Maximum PV array power
6600 / 6600 / 7200 / 7200
Maximum MPPT voltage range
120-450v
PV array open-circuit voltage
500V
Solar charging current
20A
Battery type
Lithium battery
Battery voltage range
48V
Maximum charge/discharge current
100A
Lithium-ion battery charging strategy
Adaptive BMS
Operating temperature
-23C~+65C
Nominal input voltage
120/240V
Input voltage range
90-140V/180-280V
Frequency range
50/60Hz
High-voltage battery module
6.4kwh / 12.8kwh / 12.8kwh / 19.2kwh
Nominal capacity
6400wh / 12800wh / 12800wh / 19200wh
Rated battery voltage
48V
Product dimensions (mm)
683*182*800 / 683*182*1185 / 683*182*1185 / 683*182*1568
Weight (kg)
66 / 116 / 116 / 166
Protection
Over-charge, over-discharge, over-current, short-circuit and over-temperature protection
Noise (dB)
40 dB at 1 m, IP20
Operating temperature 2
-20C~+65C
Humidity
0-95% (non-condensing)
MPPT efficiency
99.9%
US efficiency
97.3% / 97.5% / 97.5% / 97.5%
Maximum battery-to-AC efficiency
97.2% / 97.4% / 97.4% / 97.4%
Warranty
5 years

Questions before quotation

Is USASP intended for standard 230V single-phase projects?

No. The defining specification is 120/240V split-phase output, so it should not be treated as a default substitute for 230V single-phase systems.

Can USASP connect to the grid?

Current data states that grid-connected AC output is subject to local regulations. The project location and installation design must be reviewed.

Which USASP battery capacities are listed?

Current configurations include 6.4, 12.8 and 19.2 kWh battery options.
