Low-voltage off-grid storage systems

YE Series 5 kW-Class 230V Off-Grid Storage System

YE serves compatible 230V projects that need a 5 kW-class system with storage starting at 10.24 kWh. It keeps a single-inverter positioning while offering five battery capacities up to 30.72 kWh.

Request YE System Selection & B2B Quote
Back to Stacked Low-Voltage Off-Grid Hybrid Home Storage Systems

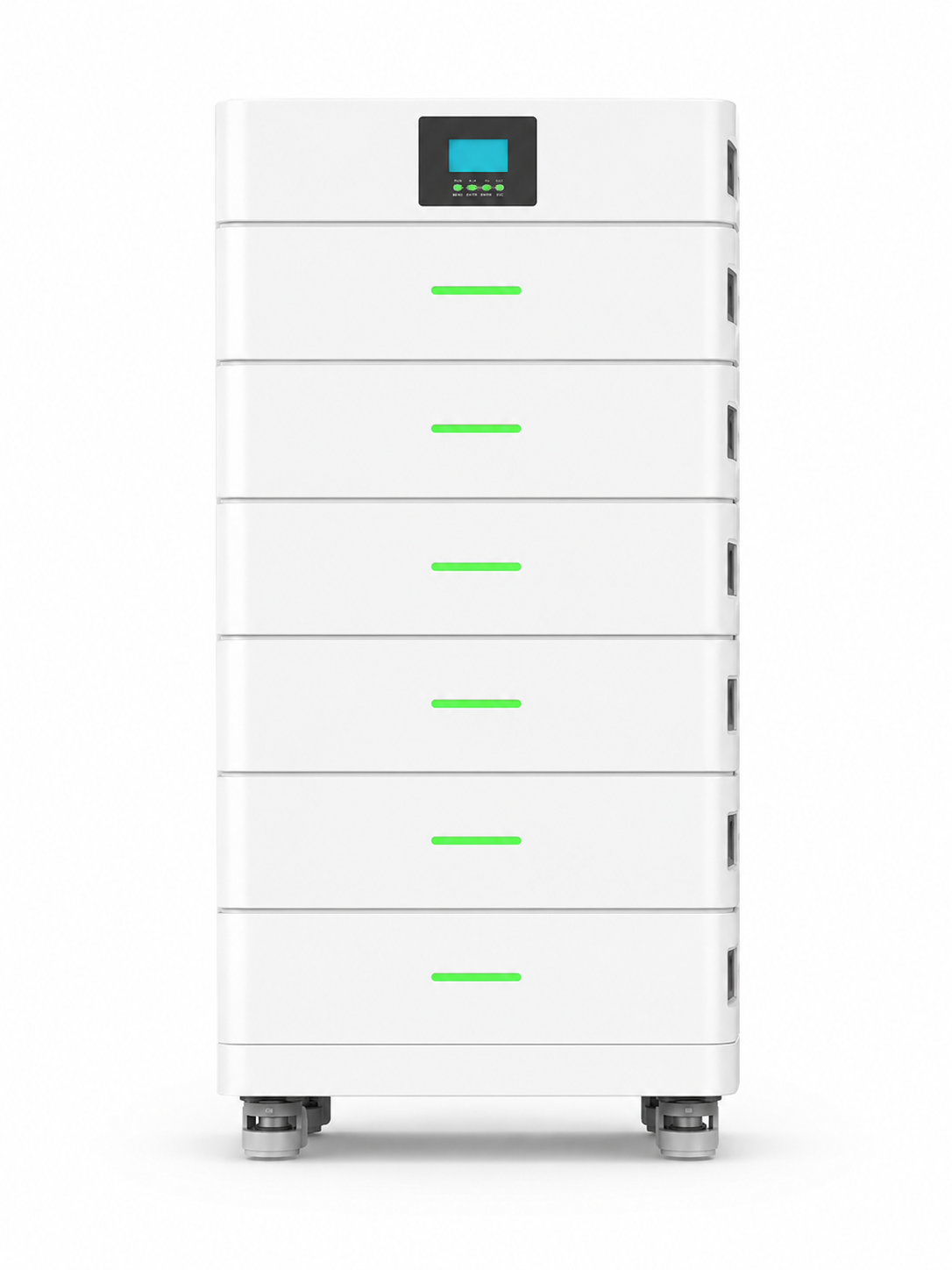

YE Series 5 kW AC Hybrid Solar Power SystemYE Series 5 kW AC Hybrid Solar Power System
OSH

Project supply details

YE Series 5 kW AC Hybrid Solar Power System for solar energy storage and project supply.

Suitable for solar storage projects, off-grid backup and distributor project supply.

Model Range
YE Series 5 kW
Inverter type
5.5KW/51.2VACHybrid inverter
Rated output power
5.5KW
Request Quote

YE Series 5 kW System Applications

YE Series 5 kW AC hybrid solar power system application diagram
Application and connection overview for project planning. Final configuration depends on the selected model and project requirements.

Information Needed to Select a YE System

  • Confirmation of compatible 230V site supply
  • Required battery capacity and critical loads
  • PV array and charging-source conditions
  • Order quantity and delivery destination
Submit YE System Requirements & Request Quote

230V Off-Grid Storage from 10.24 kWh

  • 5.5 kW/51.2V hybrid inverter with 230VAC 50Hz pure sine wave output.
  • Five battery configurations from 10.24 to 30.72 kWh.
  • 120–450Vdc PV MPPT range with a maximum 500Vdc open-circuit voltage.
  • Current data lists a 2-year inverter warranty and 5-year LFP battery warranty.

Applications for YE 230V Storage Systems

  • Compatible 230V shop backup
  • Home critical-load storage
  • Small offices and distributor capacity packages

Core specifications

Model RangeYE Series 5 kW
Inverter type5.5KW/51.2VACHybrid inverter
Rated output power5.5KW
Output waveformPure sine wave
System configuration

YE Series 5 kW AC Hybrid Solar Power System technical details

System Configuration

Model
YE-5K10B 5KW/10.24KWH / YE-5K15B 5KW/15.36KWH / YE-5K20B 5KW/20.48KWH / YE-5K25B 5KW/25.6KWH / YE-5K30B 5KW/30.72KWH
Inverter type
5.5KW/51.2VACHybrid inverter
Rated output power
5.5KW
Output waveform
Pure sine wave
Output voltage
230VAC50HZ
Low DC warning voltage
44.8Vdc
Low DC cut-off voltage
43.2Vdc
Low DC warning recovery voltage
44.8Vdc
Total charging current (grid + solar)
Maximum 100A
Bulk charging voltage
58.6Vdc
Float charging voltage
57.6Vdc
Standard battery module
51.2V102Ah*2 / 51.2V102Ah*3 / 51.2V102Ah*4 / 51.2V102Ah*5 / 51.2V102Ah*6
Nominal capacity(25C,0.2C)
10240Wh / 15360Wh / 20480Wh / 25600Wh / 30720Wh
Rated battery voltage
51.2Vdc
Maximum charging current
100A1 seconds
Maximum discharge current
100A
Operating voltage range
42Vdc~54.72Vdc
Operating temperature
-23C~+65C
Rated input voltage
230 Vac, configurable: 208/220/230/240 Vac
Input voltage range
90-280V
Frequency range
40-70 Hz, default
Main topology
L+N+PE
Minimum input voltage
90 Vac
Maximum input voltage
280 Vac
Rated current (RMS)
22.7A
Maximum current (RMS)
Maximum 40A
Rated PV voltage
360Vdc
PV array MPPT voltage range
120Vdc~450Vdc
Maximum PV open-circuit voltage
500Vdc
Solar charging current
Maximum 80A
Product dimensions (mm)
500*461*523 / 500*461*686 / 500*461*850 / 500*461*1013 / 500*461*1176
Weight (kg)
115 / 165 / 215 / 265 / 315
Protection
Over-charge, over-discharge, over-current, short-circuit and over-temperature protection
Noise (dB)
<40 dB at <30C (1 m)
Operating temperature 2
-23C~+65C
Humidity
0-95% (non-condensing)
Altitude (m)
<6000
Efficiency
92.0%
Warranty
Hybrid inverter 2 years / LFP lithium battery 5 years

Questions before quotation

How is YE different from LS?

Both are 5 kW-class systems, but YE storage starts at 10.24 kWh while LS starts at 5.12 kWh.

Does YE offer a 30 kWh-class configuration?

Yes. The largest current configuration is listed at 30.72 kWh.

How are YE warranties divided?

Current data lists 2 years for the hybrid inverter and 5 years for the LFP battery; order documents should confirm the final terms.
