YEB 10 kW Off-Grid Solar Battery System for Small Business
The YEB 10 kW off-grid solar system combines a pure sine wave hybrid inverter, solar charging and scalable 20.48-61.44 kWh lithium battery storage for shops, offices, clinics, farms and other small businesses in Nigeria and Africa. Configure the system around simultaneous load, monthly electricity use and available charging sources.

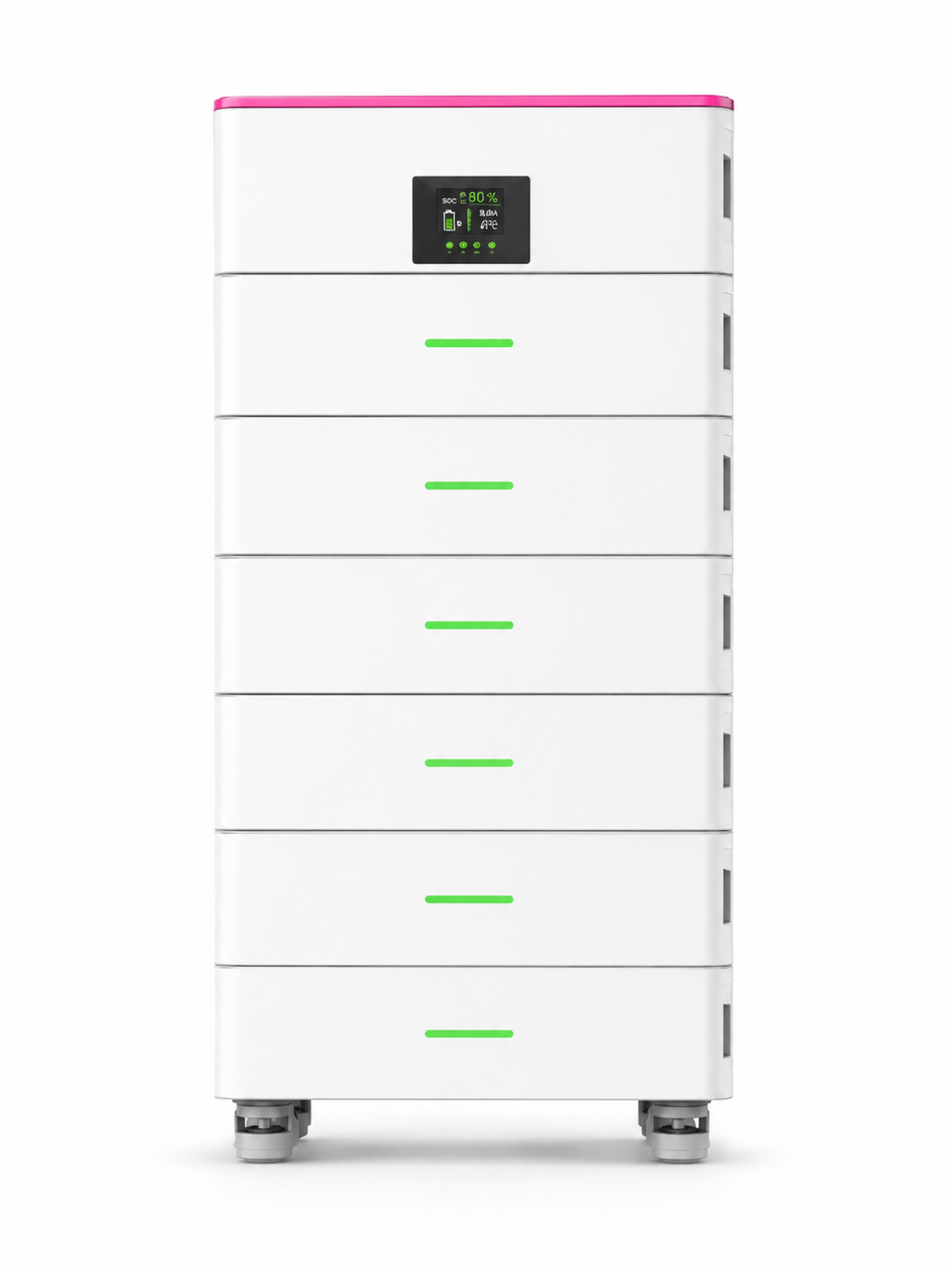

YEB Series 10 kW AC Hybrid Solar Power Generation SystemProject supply details
YEB Series 10 kW AC Hybrid Solar Power Generation System for solar energy storage and project supply.
Suitable for solar storage projects, off-grid backup and distributor project supply.
- Model Range
- YEB Series 10 kW
- Inverter type
- 10KW/51.2VACHybrid inverter
- Rated output power
- 10KW
YEB 10 kW System Applications
Information Needed for System Selection and Quotation
- Appliances and rated power
- Whether the system connects to solar panels, the grid or a generator
- Preferred battery capacity, or a request for Solaura to recommend one
- Order quantity, target market and delivery destination
Reliable Off-Grid Backup for Small Businesses in Africa
- 10 kW pure sine wave output for shops, offices, clinics, small farms and service businesses.
- Five battery configurations from 20.48 kWh to 61.44 kWh.
- Solar and AC charging support for off-grid and weak-grid project conditions.
- 230 VAC, 50 Hz output for Nigeria and other compatible African markets.
- Over-charge, over-discharge, over-current, short-circuit and over-temperature protection.
- Model lists, specifications, certification documents, packing information and project pricing available for distributors, installers and EPC buyers.
Small-Business Applications for the YEB 10 kW System
- Shops, supermarkets and small retail sites
- Offices and small business centres
- Clinics, pharmacies and healthcare service points
- Farms, livestock sites and agricultural equipment
- Restaurants, cafes and service shops
- Commercial backup in locations with unstable grid supply
- Community facilities and remote project sites
Actual load support depends on appliance power, starting current, simultaneous use, solar array configuration and selected battery capacity. Buyers should submit a load list rather than sizing the project from the 10 kW rating alone.
YEB Series System Configurations
| Model | Inverter output | Battery modules | Nominal capacity | Rated battery voltage | Product dimensions (mm) | Weight |
|---|---|---|---|---|---|---|
| YEB-10K20B | 10 kW | 51.2V 200Ah x 2 | 20.48 kWh | 51.2 VDC | 845 x 461 x 520 | 200 kg |
| YEB-10K30B | 10 kW | 51.2V 200Ah x 3 | 30.72 kWh | 51.2 VDC | 845 x 461 x 683 | 290 kg |
| YEB-10K40B | 10 kW | 51.2V 200Ah x 4 | 40.96 kWh | 51.2 VDC | 845 x 461 x 845.5 | 380 kg |
| YEB-10K50B | 10 kW | 51.2V 200Ah x 5 | 51.20 kWh | 51.2 VDC | 845 x 461 x 1008 | 470 kg |
| YEB-10K60B | 10 kW | 51.2V 200Ah x 6 | 61.44 kWh | 51.2 VDC | 845 x 461 x 1170.5 | 560 kg |
All five configurations use a 10 kW pure sine wave hybrid inverter. They differ in battery module quantity, stored energy, dimensions and weight. Select a model around simultaneous load, monthly electricity use, installation space, shipping conditions and budget.
How Is a 10 kW Off-Grid Inverter and Battery System Priced in Nigeria?
YEB 10 kW system pricing in Nigeria depends on battery capacity, solar panel quantity, shipping destination, order volume and whether the project requires a complete inverter, battery and solar panel package. A 20.48 kWh configuration and a 61.44 kWh configuration have substantially different costs, so buyers should not compare price by inverter power alone. Share the maximum simultaneous load, monthly electricity use, quantity and delivery location for a more accurate B2B configuration and quotation.
Request YEB 10 kW System Sizing & B2B QuoteCore specifications
| Model Range | YEB Series 10 kW |
|---|---|
| Inverter type | 10KW/51.2VACHybrid inverter |
| Rated output power | 10KW |
| Output waveform | Pure sine wave |
| Battery capacity range | 20.48-61.44 kWh |
| Rated battery voltage | 51.2 VDC |
| Battery module range | 51.2V 200Ah x 2-6 |
| Product dimensions range (mm) | 845 x 461 x 520-1170.5 |
| Weight range | 200-560 kg |
YEB Series 10 kW AC Hybrid Solar Power Generation System technical details
System Configuration
Questions before quotation
Can the YEB 10 kW system power a complete shop?
It depends on the combined power and simultaneous use of lighting, refrigeration, air conditioning, pumps and other appliances. A load list is required before selecting the battery and solar array.
What is the difference between the 20.48 kWh and 61.44 kWh configurations?
Both use a 10 kW inverter. The main difference is stored energy, so the larger configuration can generally support the same load for longer.
Can the system charge from solar and an AC source?
Yes. The current configuration supports solar and AC charging. Final wiring and operating strategy must be confirmed for the project site.
Can I purchase the inverter and battery system without solar panels?
Yes. Buyers can request the inverter-and-battery system or ask Solaura to match compatible solar panels.
Do you support distributors and bulk orders?
Yes. Distributors, installers and EPC buyers can request model lists, technical specifications, certification documents, packing information and volume pricing.
